Aluminium Wire
Cat No. 177A-186A

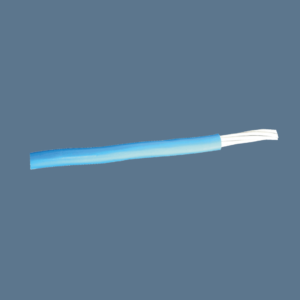

ROUND 1 CORE PVC ALUMINIUM WIRE
Features:
- Best quality under strict norms & tests.
- Own manufacturing unit of PVC Compound.
Product Description
Round – 1 Core – PVC – Aluminium Wire & Cable (Length 92m.)
Cat No. | No./Size of Strand (mm.) | Conductor Area (Sq.mm.) |
---|---|---|
177-A | 7/1.70 | 16 |
186-A | 7/2.14 | 25 |
Cable Features:
- Manufactured on extruded imported machinery.
- Aluminium conductor used and manufactured manufactured from electroltically refined (E.C. GRADE) aluminium having purity of 99.5%.
- Do not get heated on recommended load due to purity of conductors.
- Aging factor does not hamper the quality of Nirol wires and similarly a climatic condition too does not have any adverse effect on Nirol wires and cables.
- Controlling voltage dropping even at a long distance which ensures long life to electric appliances.
- Tested as per IS: 694:2010 standards of ISI.
- Passed from another test in which the wires immerse in water at 60 C for 24 hours after 24 hours 6000 volts AC current is passed for 5 minutes continuously.
- FR Insulation. In case of short circuit/fire, the cable never catches fire.
- Complete & full length/gauge as per stamp marked on every coil.
- Useful for domestic & industrial purposes.
- Inscribe CM/L No. 9700149616 with ISI logo on every coil.
- Best quality under strict norms & tests.
- Own manufacturing unit of PVC Compound.
- For maintaining good quality, aluminium conductors are drawing & annealing in own units.
Cat No. 140-186

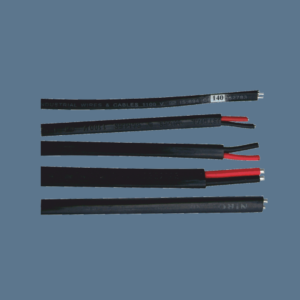

FLAT2 CORE PVC ALUMINIUM WIRE
Features:
- Manufactured on extruded imported machinery.
- Do not get heated on recommended load due to purity of conductors.
- Aging factor does not hamper the quality of Nirol wires
Product Description
Flat – 2 Core – PVC – Aluminium Wire & Cable (Length 92m.)
Cat No. | No./Size of Strand (mm.) | Conductor Area (Sq.mm.) |
---|---|---|
140 | 1/1.40 | 1.5 |
141 | 1/1.80 | 2.5 |
142 | 1/2.25 | 4.0 |
143 | 1/2.78 | 6.0 |
144 | 1/3.56 | 10.0 |
177 | 7/1.70 | 16.0 |
186 | 7/2.14 | 25.0 |
Cable Features:
- Manufactured on extruded imported machinery.
- Aluminium conductor used and manufactured manufactured from electroltically refined (E.C. GRADE) aluminium having purity of 99.5%.
- Do not get heated on recommended load due to purity of conductors.
- Aging factor does not hamper the quality of Nirol wires and similarly a climatic condition too does not have any adverse effect on Nirol wires and cables.
- Controlling voltage dropping even at a long distance which ensures long life to electric appliances.
- Tested as per IS: 694:2010 standards of ISI.
- Passed from another test in which the wires immerse in water at 60 C for 24 hours after 24 hours 6000 volts AC current is passed for 5 minutes continuously.
- FR Insulation. In case of short circuit/fire, the cable never catches fire.
- Complete & full length/gauge as per stamp marked on every coil.
- Useful for domestic & industrial purposes.
- Inscribe CM/L No. 9700149616 with ISI logo on every coil.
- Best quality under strict norms & tests.
- Own manufacturing unit of PVC Compound.
- For maintaining good quality, aluminium conductors are drawing & annealing in own units.
Cat No. 145-187

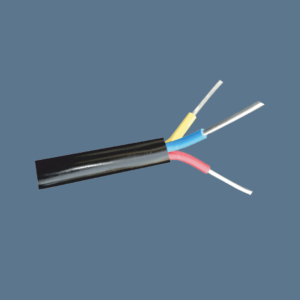

ROUND 3 CORE PVC ALUMINIUM WIRE
Features:
- Best quality under strict norms & tests.
- Own manufacturing unit of PVC Compound.
- For maintaining good quality, aluminium conductors are drawing & annealing in own units.
Product Description
Round – 3 Core – PVC – Aluminium Wire & Cable (Length 92m.)
Cat No. | No./Size of Strand (mm.) | Conductor Area (Sq.mm.) |
---|---|---|
145 | 1/2.25 | 4.0 |
146 | 1/2.78 | 6.0 |
143 | 1/3.56 | 10.0 |
178 | 7/1.70 | 16.0 |
187 | 7/2.14 | 25.0 |
Cable Features:
- Manufactured on extruded imported machinery.
- Aluminium conductor used and manufactured manufactured from electroltically refined (E.C. GRADE) aluminium having purity of 99.5%.
- Do not get heated on recommended load due to purity of conductors.
- Aging factor does not hamper the quality of Nirol wires and similarly a climatic condition too does not have any adverse effect on Nirol wires and cables.
- Controlling voltage dropping even at a long distance which ensures long life to electric appliances.
- Tested as per IS: 694:2010 standards of ISI.
- Passed from another test in which the wires immerse in water at 60 C for 24 hours after 24 hours 6000 volts AC current is passed for 5 minutes continuously.
- FR Insulation. In case of short circuit/fire, the cable never catches fire.
- Complete & full length/gauge as per stamp marked on every coil.
- Useful for domestic & industrial purposes.
- Inscribe CM/L No. 9700149616 with ISI logo on every coil.
- Best quality under strict norms & tests.
- Own manufacturing unit of PVC Compound.
- For maintaining good quality, aluminium conductors are drawing & annealing in own units.
Cat No. 148-188

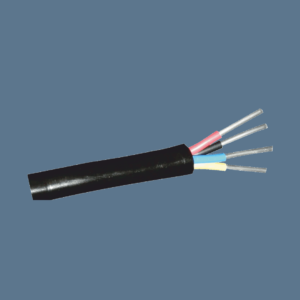

ROUND 4 CORE PVC ALUMINIUM WIRE
Features:
- Best quality under strict norms & tests.
- Own manufacturing unit of PVC Compound.
Product Description
Round – 4 Core – PVC – Aluminium Wire & Cable (Length 92m.)
Cat No. | No./Size of Strand (mm.) | Conductor Area (Sq.mm.) |
---|---|---|
148 | 1/2.25 | 4.0 |
149 | 1/2.78 | 6.0 |
150 | 1/3.56 | 10.0 |
179 | 7/1.70 | 16.0 |
188 | 7/2.14 | 25.0 |
Cable Features:
- Manufactured on extruded imported machinery.
- Aluminium conductor used and manufactured manufactured from electroltically refined (E.C. GRADE) aluminium having purity of 99.5%.
- Do not get heated on recommended load due to purity of conductors.
- Aging factor does not hamper the quality of Nirol wires and similarly a climatic condition too does not have any adverse effect on Nirol wires and cables.
- Controlling voltage dropping even at a long distance which ensures long life to electric appliances.
- Tested as per IS: 694:2010 standards of ISI.
- Passed from another test in which the wires immerse in water at 60 C for 24 hours after 24 hours 6000 volts AC current is passed for 5 minutes continuously.
- FR Insulation. In case of short circuit/fire, the cable never catches fire.
- Complete & full length/gauge as per stamp marked on every coil.
- Useful for domestic & industrial purposes.
- Inscribe CM/L No. 9700149616 with ISI logo on every coil.
- Best quality under strict norms & tests.
- Own manufacturing unit of PVC Compound.
- For maintaining good quality, aluminium conductors are drawing & annealing in own units.
Cat No. 151-152

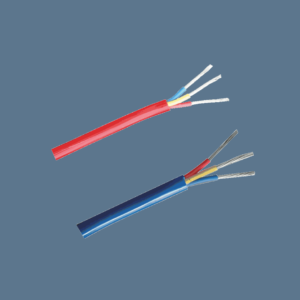

ROUND 3 CORE PVC ALUMINIUM CABLE
Features:
- Useful for domestic & industrial purposes.
- Best quality under strict norms & tests.
Round – 3 Core – PVC – Aluminium Wire & Cable (Length 92m.)
Cat No. | Size | No. of Conductor /SWG |
---|---|---|
151 | 7/.28″ | 7/22 |
152 | 7/.036″ | 7/20 |
Round – 3 Core – PVC – Aluminium Wire & Cable (Length 64m.)
Cat No. | Size | No. of Conductor /SWG |
---|---|---|
151-A | 7/.28″ | 7/22 |
152-A | 7/.036″ | 7/20 |
Cable Features:
- Manufactured on extruded imported machinery.
- Aluminium conductor used and manufactured manufactured from electroltically refined (E.C. GRADE) aluminium having purity of 99.5%.
- Do not get heated on recommended load due to purity of conductors.
- Aging factor does not hamper the quality of Nirol wires and similarly a climatic condition too does not have any adverse effect on Nirol wires and cables.
- Controlling voltage dropping even at a long distance which ensures long life to electric appliances.
- Tested as per IS: 694:2010 standards of ISI.
- Passed from another test in which the wires immerse in water at 60 C for 24 hours after 24 hours 6000 volts AC current is passed for 5 minutes continuously.
- FR Insulation. In case of short circuit/fire, the cable never catches fire.
- Complete & full length/gauge as per stamp marked on every coil.
- Useful for domestic & industrial purposes.
- Inscribe CM/L No. 9700149616 with ISI logo on every coil.
- Best quality under strict norms & tests.
- Own manufacturing unit of PVC Compound.
- For maintaining good quality, aluminium conductors are drawing & annealing in own units.
