Description

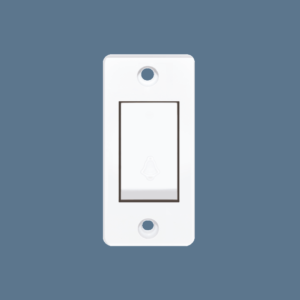

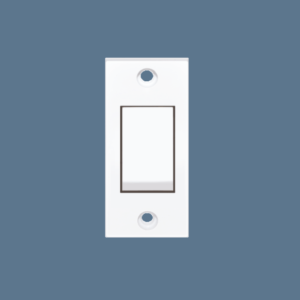

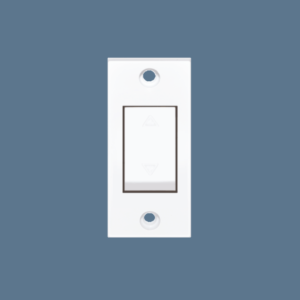

1 WAY SWITCH 10 AMP.

Features:

• NIROL Tiny switches are duly certified by ISI (Bureau of Indian Standards).
• Fabricated through latest hydraulic molding machine.
• Fresh & top quality FR (Flame Retardant) Poly Carbonate (PC) has been used for manufacturing.
• Screws & Terminals have been electroplated by pure silver and tested by GO-NO-GO gauge apparatus.
• Connecting Points (Rivets) is filled with pure silver in following ampere switches:-

1. In 16 Amp. Switch Rivets Pure Silver contacts head diameter is 05 mm The thickness of Pure silver is 0.04mm
2. In 10 Amp. Switch Rivets Pure Silver contacts head diameter is 4.5 mm The thickness of Pure silver is 0.04mm
3. In 06 Amp. Switch Rivets Pure Silver contacts head diameter is 04 mm The thickness of Pure silver is 0.03mm

• Pure Silver has extremely high electrical conductivity, very low contact resistance. Also rules out to the sparking and ensures proper current supply to electrical appliances.
• Manufactured with top quality Brass and Phosphorus Bronze (PB) metal.
• Various beautiful designs, Safe & durable.
• No effect of weather conditions.
• Undergone through various tests as per IS:3854:1997 testing norms.

Important Tests (As per IS-3854:1997)

• As per the instructions laid down by the Bureau of Indian Standards the test of 40,000 ON-OFF operations are required by applying load of 6 Amp and 10 Amp for passes of these switches, but we are the Nirol Switches undergo 3 times (i.e. 1,20,000 ON-OFF operations) more than the laid down by rules by the ISI before marketing.
