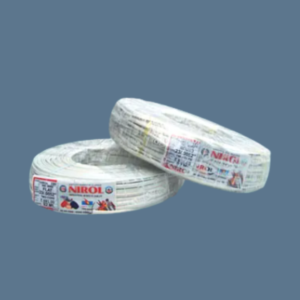

Copper Wire, Round 2 Core
Cat No. 191-112
Copper Wire Round, 2 Core
Features:
- Manufactured on extruded imported machinery.
- Copper conductor used, manufactured with electolyically refined (E.C. GRADE) copper having purity of 99.97%.
- Do not get heated on recommended load due to purity of conductors.
Product Description
Round – 2 Core Copper Wire (Length 92m.)
Cat No. | No./Size of Strand (mm.) | Conductor Area (Sq.mm.) |
---|---|---|
191 | 16/.20 | 0.50 |
192 | 24/.20 | 0.75 |
193 | 32/.20 | 1.00 |
194 | 48/.20 | 1.50 |
195 | 80/.20 | 2.50 |
112 | 128/.20 | 4.00 |
Cable Features:
- Manufactured on extruded imported machinery.
- Copper conductor used, manufactured with electolyically refined (E.C. GRADE) copper having purity of 99.97%.
- Do not get heated on recommended load due to purity of conductors.
- These cables are quite safe during the fire break-out.
- Aging factor does not hamper the quality of Nirol wires and similarly a climatic condition too does not have any adverse effect on Nirol wires and cables.
- Controlling voltage dropping even at a long distance which ensures long life to electric appliances.
- Tested as per IS: 694:2010 standards of ISI.
- Passed from another test in which the wires immerse in water at 600C for 24 hours after 24 hours 6000 volts AC current is passed for 5 minutes continuously.
- Complete & full length/gauge as per stamp marked on every coil.
- Useful for domestic & industrial purposes.
- Inscribe CM/L No. 9700149616 with ISI logo on every coil.
- Best quality under strict norms & tests.
- Own manufacturing unit of PVC Compound.
- For maintaining good quality, copper is drawing & annealing in own units.
Cat No. 109
FLAT COPPER WIRE, 2 CORE
Features:
- Manufactured on extruded imported machinery.
- Do not get heated on recommended load due to purity of conductors.
Product Description
Flat – Copper Wire – 2 Core (Length 90m.)
Cat No. | Size | No. of Conductor /SWG |
---|---|---|
109 | 23/.0052″ | 23/40 |
Cable Features:
- Manufactured on extruded imported machinery.
- Copper conductor used, manufactured with electolyically refined (E.C. GRADE) copper having purity of 99.97%.
- Do not get heated on recommended load due to purity of conductors.
- Aging factor does not hamper the quality of Nirol wires and similarly a climatic condition too does not have any adverse effect on Nirol wires and cables.
- Controlling voltage dropping even at a long distance which ensures long life to electric appliances.
- Complete & full length/gauge as per stamp marked on every coil.
- Useful for domestic & industrial purposes.
- Best quality under strict norms & tests.
- Own manufacturing unit of PVC Compound.
- For maintaining good quality, copper conductors are drawing & annealing in own units.
Cat No. 111
ROUND COPPER WIRE, 2 CORE
Features:
- Manufactured on extruded imported machinery.
- Do not get heated on recommended load due to purity of conductors.
Cat No. | Size | No. of Conductor /SWG |
---|---|---|
111 | 23/.0052″ | 23/40 |
Cable Features:
- Manufactured on extruded imported machinery.
- Copper conductor used, manufactured with electolyically refined (E.C. GRADE) copper having purity of 99.97%.
- Do not get heated on recommended load due to purity of conductors.
- Aging factor does not hamper the quality of Nirol wires and similarly a climatic condition too does not have any adverse effect on Nirol wires and cables.
- Controlling voltage dropping even at a long distance which ensures long life to electric appliances.
- Complete & full length/gauge as per stamp marked on every coil.
- Useful for domestic & industrial purposes.
- Best quality under strict norms & tests.
- Own manufacturing unit of PVC Compound.
- For maintaining good quality, copper conductors are drawing & annealing in own units.
Cat No. 130-132

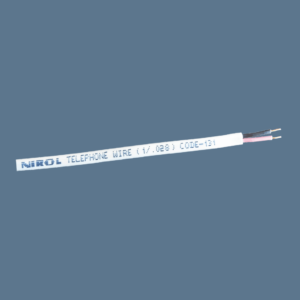

TELEPHONE COPPER WIRE 2 CORE
Features:
- Manufactured on extruded imported machinery.
- Copper conductor used, manufactured with electrolytically refined (E.C. GRADE) copper having purity of 99.97%.
Product Description
Telephone – Flat – 2 Core – Copper Wire (Length 92 m)
Cat No. | No./Size of Strand (mm) | Type / Pair |
---|---|---|
130 | 1/0.50 | Flat / 1 Pair |
131 | 1/0.70 | Flat / 1 Pair |
132 | 1/0.50 | Round / 2 Pair |
Cable Features:
- Manufactured on extruded imported machinery.
- Copper conductor used, manufactured with electrolytically refined (E.C. GRADE) copper having purity of 99.97%.
- Aging factor does not hamper the quality of Nirol wires and similarly a climatic condition too does not have any adverse effect on Nirol wires and cables.
- Controlling voltage / signal dropping even at a long distance which ensures long life to electric appliances.
- Complete & full length/gauge as per stamp marked on every coil.
- Useful for domestic & industrial purposes.
- Best quality under strict norms & tests.
- Own manufacturing unit of PVC Compound.
- For maintaining good quality, copper conductors are drawing & annealing in own units.
Cat No. 110-174
WEATHERPROOF COPPER WIRE FLAT 2 CORE
Features:
- Manufactured on extruded imported machinery.
- Copper conductor used, manufactured with electolyically refined (E.C. GRADE) copper having purity of 99.97%.
- Do not get heated on recommended load due to purity of conductors.
Product Description
Weather Proof, Copper Wire, Flat – 2 Core (Length 92m.)
Cat No. | No./Size of Strand (mm.) | Conductor Area (Sq.mm.) |
---|---|---|
110 | 16/.20 | 0.50 |
172 | 24/.20 | 0.75 |
173 | 32/.20 | 1.00 |
174 | 48/.20 | 1.50 |
Cable Features:
- Manufactured on extruded imported machinery.
- Copper conductor used, manufactured with electolyically refined (E.C. GRADE) copper having purity of 99.97%.
- Do not get heated on recommended load due to purity of conductors.
- These cables are quite safe during the fire break-out.
- Aging factor does not hamper the quality of Nirol wires and similarly a climatic condition too does not have any adverse effect on Nirol wires and cables.
- Controlling voltage dropping even at a long distance which ensures long life to electric appliances.
- Tested as per IS: 694:2010 standards of ISI.
- Passed from another test in which the wires immerse in water at 600C for 24 hours after 24 hours 6000 volts AC current is passed for 5 minutes continuously.
- Complete & full length/gauge as per stamp marked on every coil.
- Useful for domestic & industrial purposes.
- Inscribe CM/L No. 9700149616 with ISI logo on every coil.
- Best quality under strict norms & tests.
- Own manufacturing unit of PVC Compound.
- For maintaining good quality, copper is drawing & annealing in own units.
