Copper Wire Round 3 Core
Cat No. 196-113

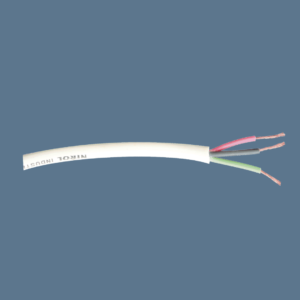

COPPER WIRE ROUND 3 CORE
Features:
- Manufactured on extruded imported machinery.
- Copper conductor used, manufactured with electolyically refined (E.C. GRADE) copper having purity of 99.97%.
- Do not get heated on recommended load due to purity of conductors.
Product Description
Round – 3 Core Copper Wire (Length 92m.)
| Cat No. | No./Size of Strand (mm.) | Conductor Area (Sq.mm.) |
|---|---|---|
| 196 | 16/.20 | 0.50 |
| 197 | 24/.20 | 0.75 |
| 198 | 32/.20 | 1.00 |
| 199 | 48/.20 | 1.50 |
| 200 | 80/.20 | 2.50 |
| 113 | 128/.20 | 4.00 |
Cable Features:
- Manufactured on extruded imported machinery.
- Copper conductor used, manufactured with electolyically refined (E.C. GRADE) copper having purity of 99.97%.
- Do not get heated on recommended load due to purity of conductors.
- These cables are quite safe during the fire break-out.
- Aging factor does not hamper the quality of Nirol wires and similarly a climatic condition too does not have any adverse effect on Nirol wires and cables.
- Controlling voltage dropping even at a long distance which ensures long life to electric appliances.
- Tested as per IS: 694:2010 standards of ISI.
- Passed from another test in which the wires immerse in water at 600C for 24 hours after 24 hours 6000 volts AC current is passed for 5 minutes continuously.
- Complete & full length/gauge as per stamp marked on every coil.
- Useful for domestic & industrial purposes.
- Inscribe CM/L No. 9700149616 with ISI logo on every coil.
- Best quality under strict norms & tests.
- Own manufacturing unit of PVC Compound.
- For maintaining good quality, copper is drawing & annealing in own units.
Cat No. 166-171

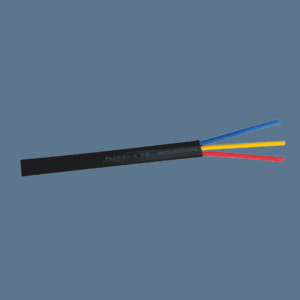

FLAT COPPER CABLE 3 CORE
Features:
- Manufactured on extruded imported machinery.
- Copper conductor used, manufactured with electolyically refined (E.C. GRADE) copper having purity of 99.97%.
- Do not get heated on recommended load due to purity of conductors.
Product Description
Flat – 3 Core Copper Cable (Length 92m.)
| Cat No. | No./Size of Strand (mm.) | Conductor Area (Sq.mm.) |
|---|---|---|
| 166 | 32/.20 | 1.0 |
| 167 | 48/.20 | 1.5 |
| 168 | 80/.20 | 2.5 |
| 169 | 56/.30 | 4.0 |
| 170 | 84/.30 | 6.0 |
| 171 | 140/.30 | 10.0 |
Cable Features:
- Manufactured on extruded imported machinery.
- Copper conductor used, manufactured with electolyically refined (E.C. GRADE) copper having purity of 99.97%.
- Do not get heated on recommended load due to purity of conductors.
- These cables are quite safe during the fire break-out.
- Aging factor does not hamper the quality of Nirol wires and similarly a climatic condition too does not have any adverse effect on Nirol wires and cables.
- Controlling voltage dropping even at a long distance which ensures long life to electric appliances.
- Tested as per IS: 694:2010 standards of ISI.
- Passed from another test in which the wires immerse in water at 600C for 24 hours after 24 hours 6000 volts AC current is passed for 5 minutes continuously.
- Complete & full length/gauge as per stamp marked on every coil.
- Useful for domestic & industrial purposes.
- Inscribe CM/L No. 9700149616 with ISI logo on every coil.
- Best quality under strict norms & tests.
- Own manufacturing unit of PVC Compound.
- For maintaining good quality, copper is drawing & annealing in own units.
